Model “Divergence Meter Z”

Nixie Clock in Wooden Case with Columns and Sockets

Designed for 6 ZM1042 / ZM1040 / Z5660M / Z566M Tubes

ZM1042 Tubes are one of the biggest mass-produced Nixie Tubes

Nixie Clocks are one of the most beautiful and popular Vintage Clocks

Clock features Startup Tune, RGB backlight, USB port for updates

External Temperature sensor with 3.5 mm jack included with the Clock

Plugable Accessories include compact external Temperature sensor

Nixie Clock is fully compatible with Arduino platform program codes

It allows you to write your own uniqe programs for the Arduino platform

All the latest Source codes are always available on our GitHub channel

PCB, Design, Schematics, Case and Software made by GRA & AFCH

Listing includes:

• Nixie Clock with Sockets and Columns in Ashwood Case
• ZM1042 Nixie Tubes [6 Tubes Set] (optional, choose in selector)
• Temperature sensor [DS18B20] [3.5mm jack] (optional, choose in selector)
• Power Supply [DC 12V/1A] [US, EU, UK, AU] (included, optional AC plug)
• Operating Instruction on vintage-style paper

Temperature sensor is included with the Clock

Power Supply is included with the Clock

Nixie Clock designed for ZM1042 / ZM1040 / Z5660M / Z566M Tubes

We offer optional accessories for Nixie Clocks:

Main Features:

• Clock uses the hugest Nixie Tubest ZM1042 – 6 pcs.
• Date format: [DD:MM:YY]; 12/24 hour format: [HH:MM:SS].
• Slot Machine (Anti poisoning – tubes saving function. Increases the service life).
• Unique RGB LED backlight with 16,7 million colors. Possible to choose any constant color off backlight LED and memorize it. Or you have option for a cyclic full spectrum color change!
• Switching on/off LED backlight in the matter of seconds.
• As alarm sound clock uses standard RTTTL (Nokia format) melodies, so you can easily change it (included songs: Mission Impossible, We Wish You…).
• Easy updating firmware via USB using Arduino IDE.
• Software based on Arduino Sketch, so MCU has Arduino bootloader within.
• Power On Self-Test (POST): LED backlight, tubes and sound. You can check firmware version at the end.
• Unique detailed tube test – our soft check each segment on every lamp. Distinguishable to see segment failure.
• High quality PCB and components. We use Japanese aluminum capacitors only (Nichicon, Panasonic).
• Clock use 12 V/1 A Power Supply INCLUDED in package. Working on 100 – 240 VAC input.
• You can choose between: US, EU, UK, AU plug.
• Dimensions: 340 mm x 90 mm x 112 mm (13.4in x 3.54in x 4.4in)

Our Benefits:

• A special Socket for each pin of ZM1042 – easy to change Tubes.
• Easy to customize firmware under Your own needs, thanks to an open platform – Arduino.
• Fast uploading via USB.
• The latest version of the firmware always available on GitHub.
• No need to download drivers – we are use only Genuine USB to serial converters (FTDI FT230).
• Drivers for them pre-installed in all popular OS: Windows, MacOS, Linux.
• Human friendly menu.
• Very high qualty of Printed Circuit Boards.
• Japan alluminium capacitors.
• Power-On Self-Test.
• Competent Technical support.

Vintage style Wooden Case for ZM1042 Nixie Tubes Clocks

All of our Wooden Cases are handmade and produced by the craftsman from our own team.

He is experienced carpenter and have a longstanding work with wood of over 30 years.

We use a maple, alder and oak for our Wooden Cases.

We approach to process of preparing the material with big responsibility.

This process includes scrupulous selection, drying in at indoor temperature of about 25 celsius for a 60 days.

Some other craftsman use fast drying in special chambers for only 8 days but are not.

Long drying gives better material quality.

Then all the details are made on the joinery machines.

And then final crafting is done with tools individually so each detail is a handmade.

Then comes the varnish coating in four stages during next 14 days.

This gives the best result in coating of every detail.

Also it is worth mentioning that all decorative plates of the Cases are made of Stainless Steel with laser engraving.

All the control buttons and switches of the Cases are also made of stainless steel.

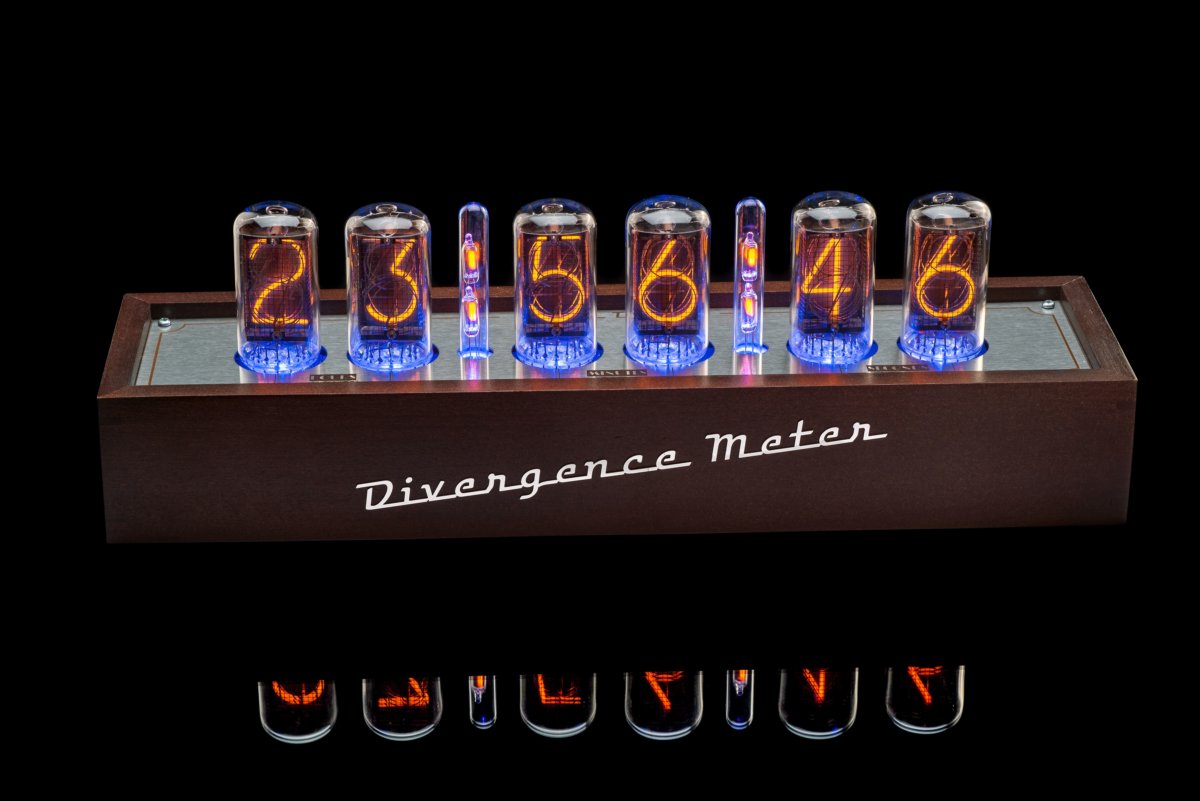

ZM1042 Nixie Tubes Clock Divergence Meter by GRA & AFCH:

ZM1042 Nixie Tubes Clocks Wooden Case Redesigned Back Panel:

Operating Instruction
