140УД1А Operational Amplifier [used]

Units Sold: 198



140УД1А Oparational Amplifier
Genuine from Kvazar





$16.95

SKU: gra_62461 Category: Tag:

140УД1А Oparational Amplifier







Listing includes:

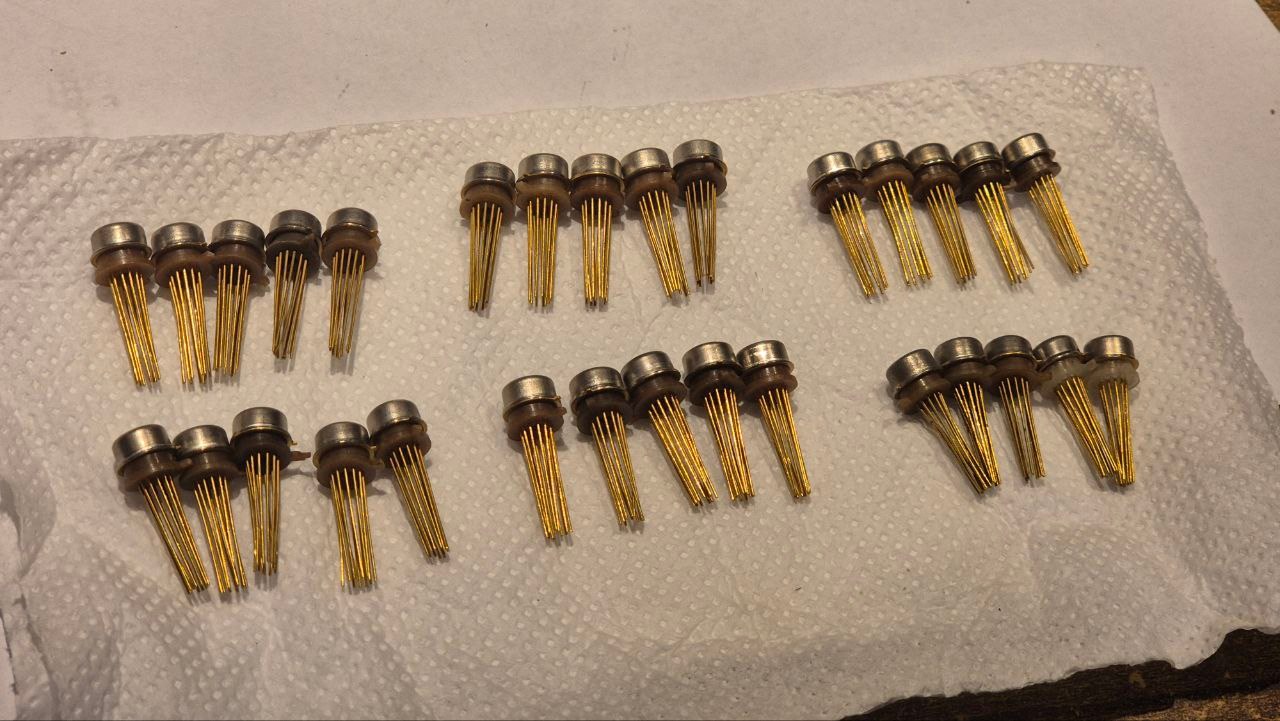

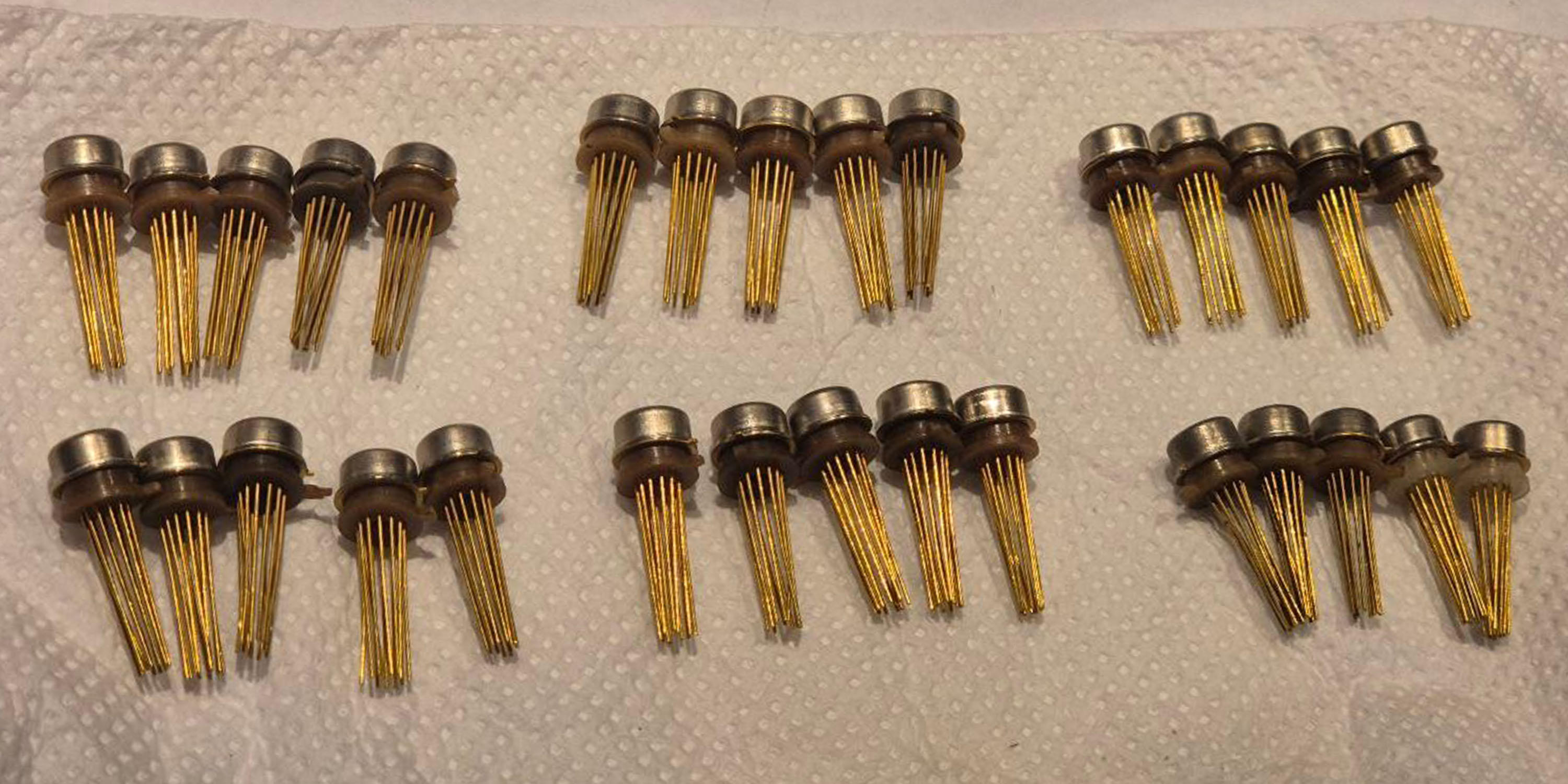

  • 140УД1А [OA] [used] – 1 pcs







Dear customers!
If you have ANY questions, PLEASE ASK us.





General description:



The 140UD1A (140УД1А) is a classic Soviet-era integrated circuit,
representing one of the first generations of general-purpose operational amplifiers (op-amps) produced in the USSR.
It is a medium-precision amplifier designed for a wide range of analog signal processing tasks.

Key Characteristics

  • External Compensation: this device does not have internal frequency compensation.
    To ensure stability and prevent oscillation in feedback circuits,
    external capacitors and resistors must be connected to specific pins.
  • Technology: It is a bipolar integrated circuit
  • Versions:
    • 140UD1A: Military-grade (ceramic/metal package, wide temperature range)
    • K140UD1A / KR140UD1A: Consumer-grade (metal or plastic DIP packages)



Technical Specifications (at ±6.3V supply)

  • Supply Voltage: Nominal ±6.3V (Operational range: ±3V to ±7V).
  • Current Consumption: Max 6 mA
  • Voltage Gain (Open Loop): 500 to 4,000
  • Input Bias Current: Max 6 µA
  • Input Offset Voltage: Max 7.5 mV
  • Slew Rate: Approx. 0.2 V/µs
  • Operating Temperature: -60°C to +125°C (Military) / -10°C to +70°C (Consumer)



Pin Configuration (TO-5 style 12-pin metal can)

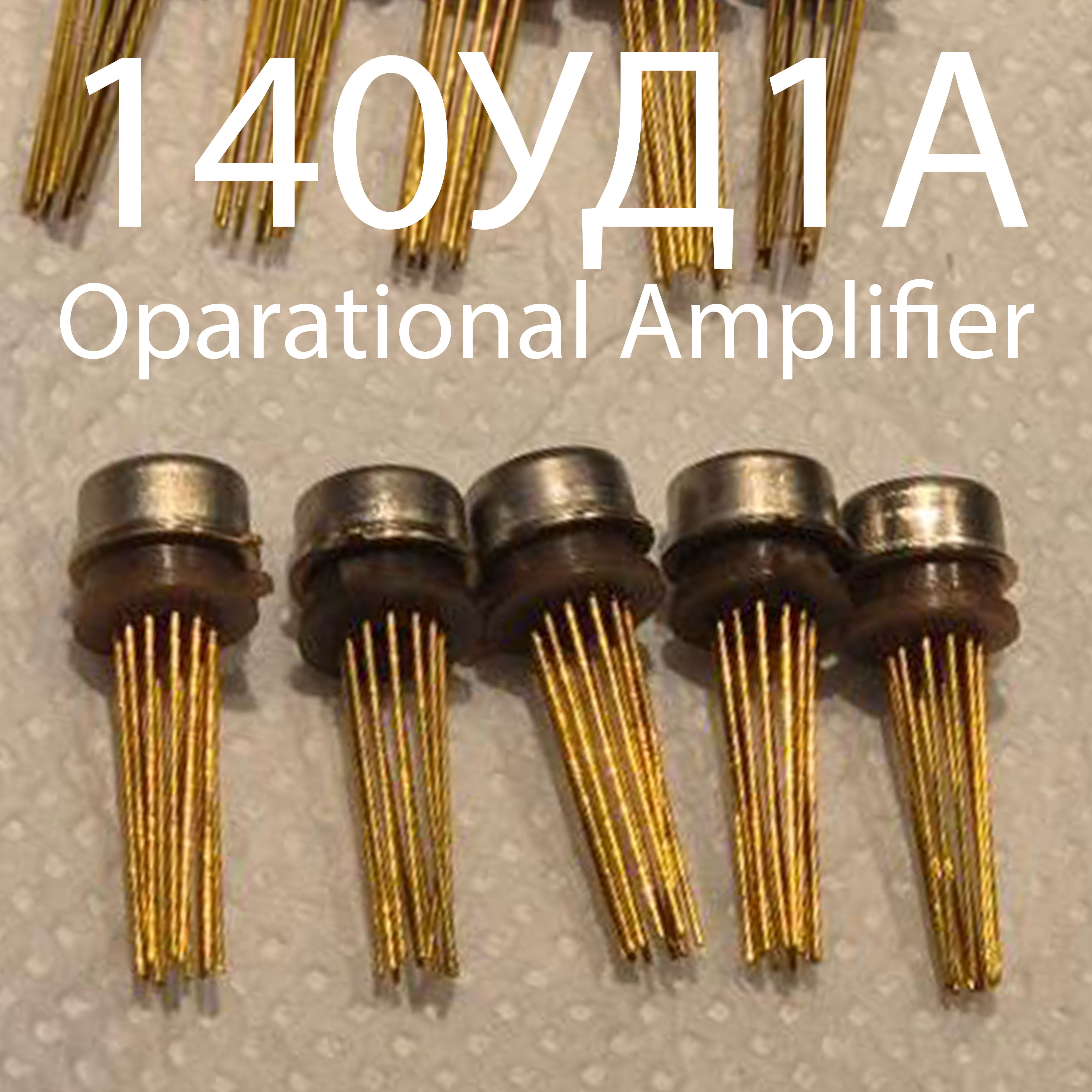

The device typically comes in a round metal-glass package (Type 301.12-1).
  1. Pin 1: Negative Supply (-Vcc)
  2. Pin 4: Ground (Common)
  3. Pin 5: Output
  4. Pin 7: Positive Supply (+Vcc)
  5. Pin 9: Inverting Input (-)
  6. Pin 10: Non-inverting Input (+)



Other pins (2, 3, 12) are used for frequency compensation or specific control.

Applications

The 140UD1A was widely used in Soviet electronics for:
  • Summing amplifiers and integrators
  • Active filters and signal generators
  • Low-frequency amplification in instrumentation and control systems

International Equivalent

The closest Western equivalent to the 140UD1 series is the µA702 (Fairchild Semiconductor),
which was one of the world’s first monolithic operational amplifiers.
