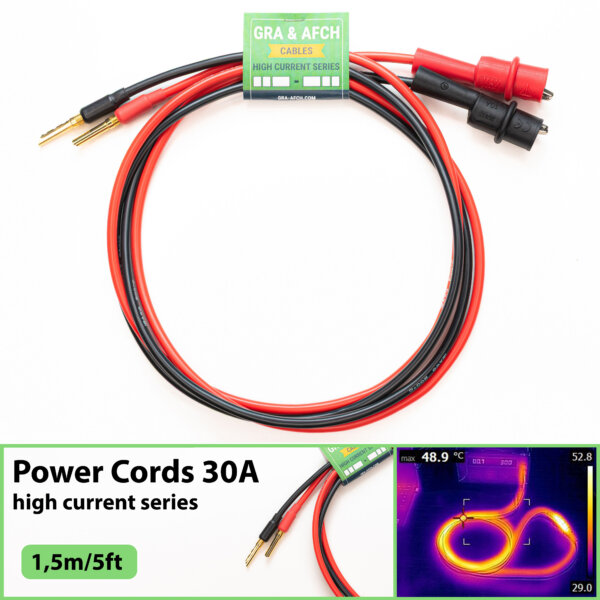

DC Power Wires Leads Cords Cables Banana to Alligator 30A 12AWG 5FT 10 FT 1M 1.5M 2M 3M for Lab Power Supply High Current Series by GRA & AFCH
Units Sold: 8
Power Cords appropriate for all Power Supplies
Both Power Cables/Leads has a 5 feet length
It is suitable for smallest 2A units and for the most powerful 30A
Cords apropriate for Models with BANANA Sockets for connectivity
Both Cords with Rated Current of 30 Amperes

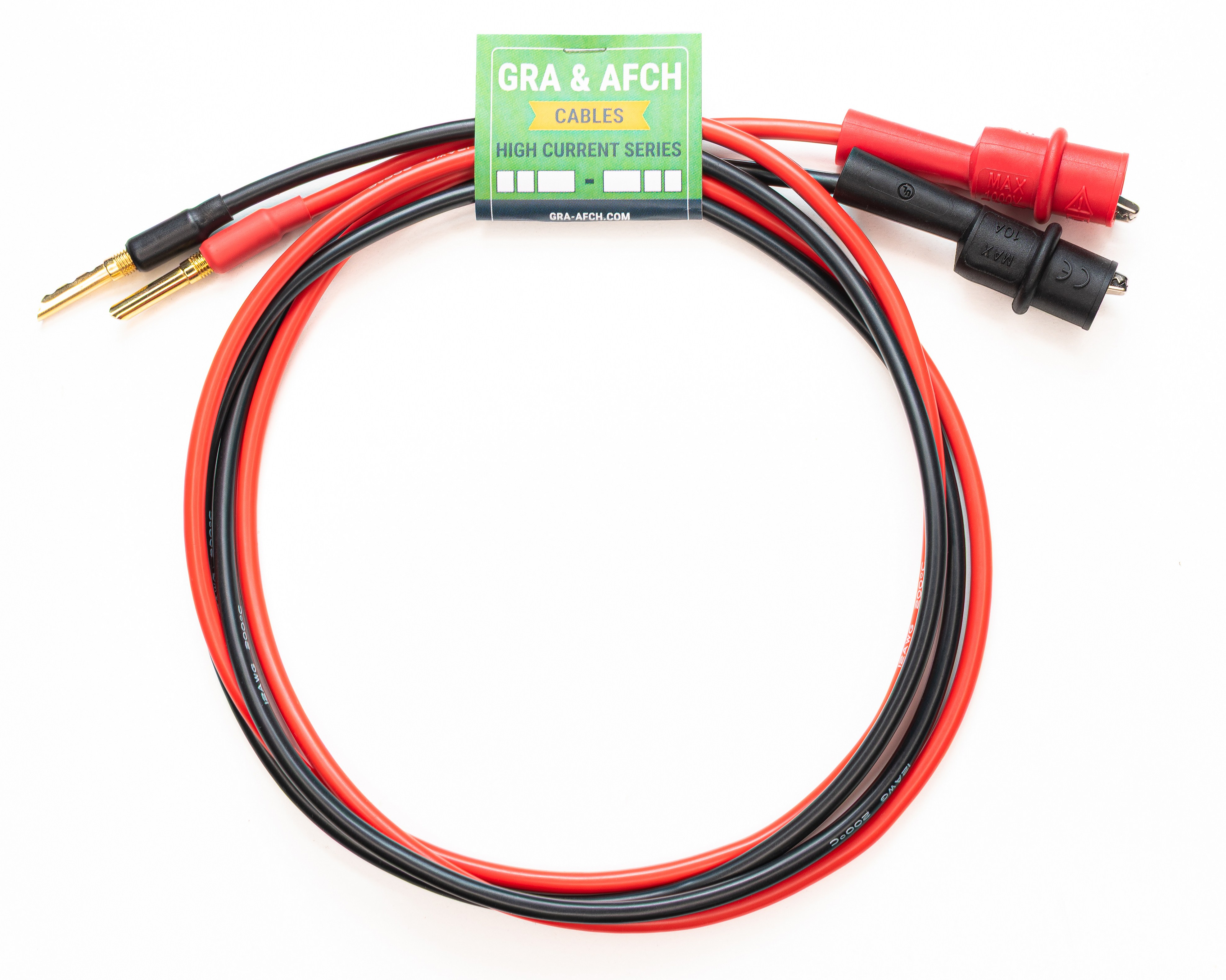

Two Power Cords with Alligator Clips and Bannana Plugs
Power Cords made of high-quality copper 12 AWG (3.3 mm2)
Insulation made of ultra flexible silicon
Two Power Cords are each of 5 feet (1.5m) length
High Current Series by GRA & AFCH
$19.50 – $49.95
Power Cords for 30 Amperes by GRA & AFCH
Banana plug to alligator clip cabel firmly connect your power supply
or other test equipment with a bite that doesn’t easily slip when pulled or hit, as often happens during debugging
Each package contains one red and one black alligator clips and bannan plug. Each wire is 5 feet (1.5m) long
This cable is capable of withstanding a current of 30 amperes for a long time without overheating
Despite its diameter, the cable is very flexible thanks to the flexible silicone insulation and the large number of thin copper conductors.
It is very convenient to use such a cable because it does not pull the connected devices with it and does not try to turn them over, as is the case with rigid cables
Listing includes:
- Power Cord for 30 Amperes with Alligator Clips and Bannana Plugs – 2 pcs
Power Cords can be suppliyed of different lenghts: 0.3, 0.5, 1, 1.5, 2, 2.5, 3 m / 1, 1.6, 3.3, 5, 6.6, 8.2, 10 FT
Dear customers!
If you have ANY questions, PLEASE ASK us.
If you have ANY questions, PLEASE ASK us.
Features:
Ultra Flexible Cable in silicone insulation, 1.5 m (5 ft.) for 30 Amperes
| Cross sectional area of each wire: | 12 AWG (3.3 mm2) |

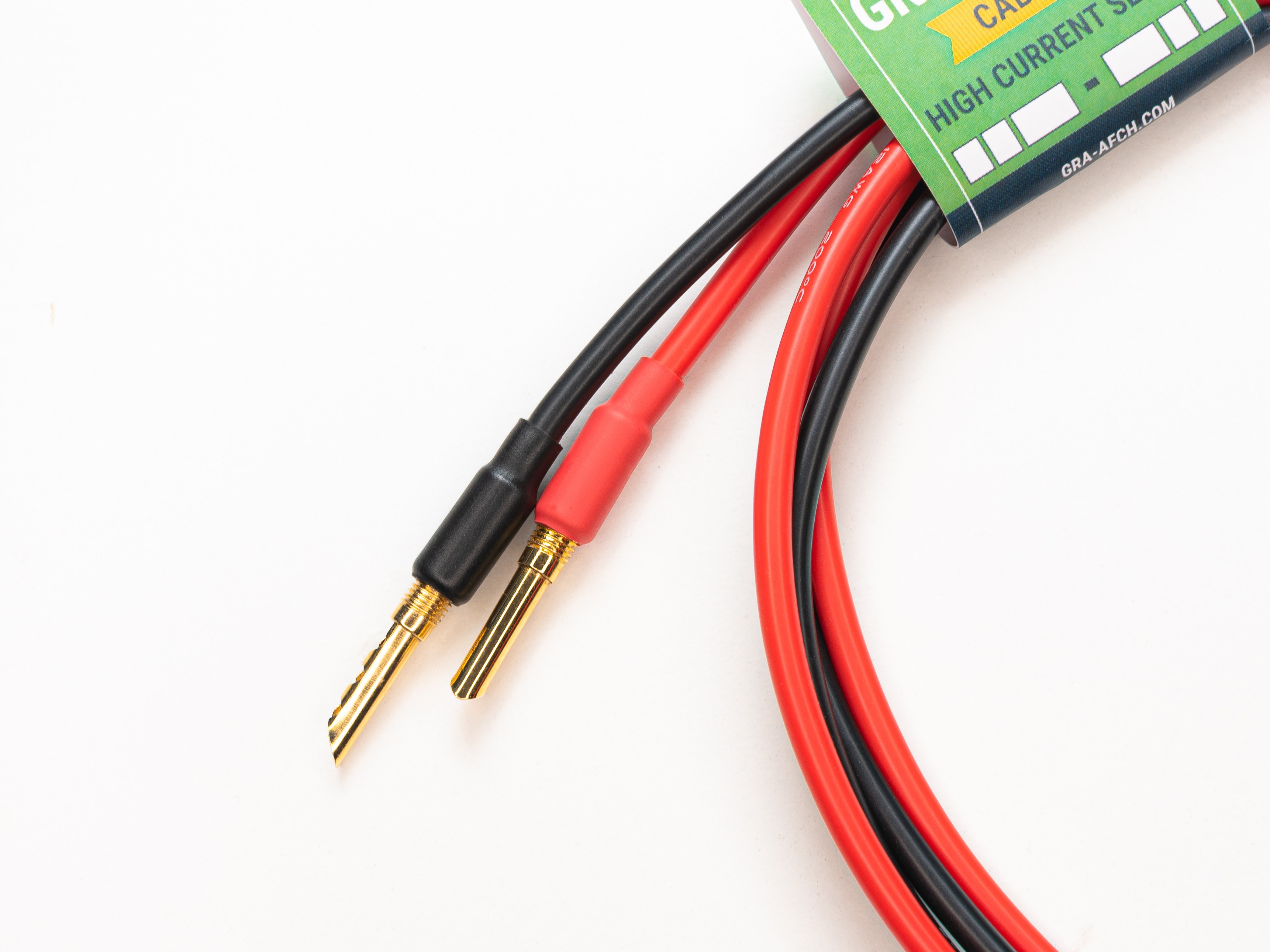

| One end of Cable has Banana plug with diameter: | 4 mm |

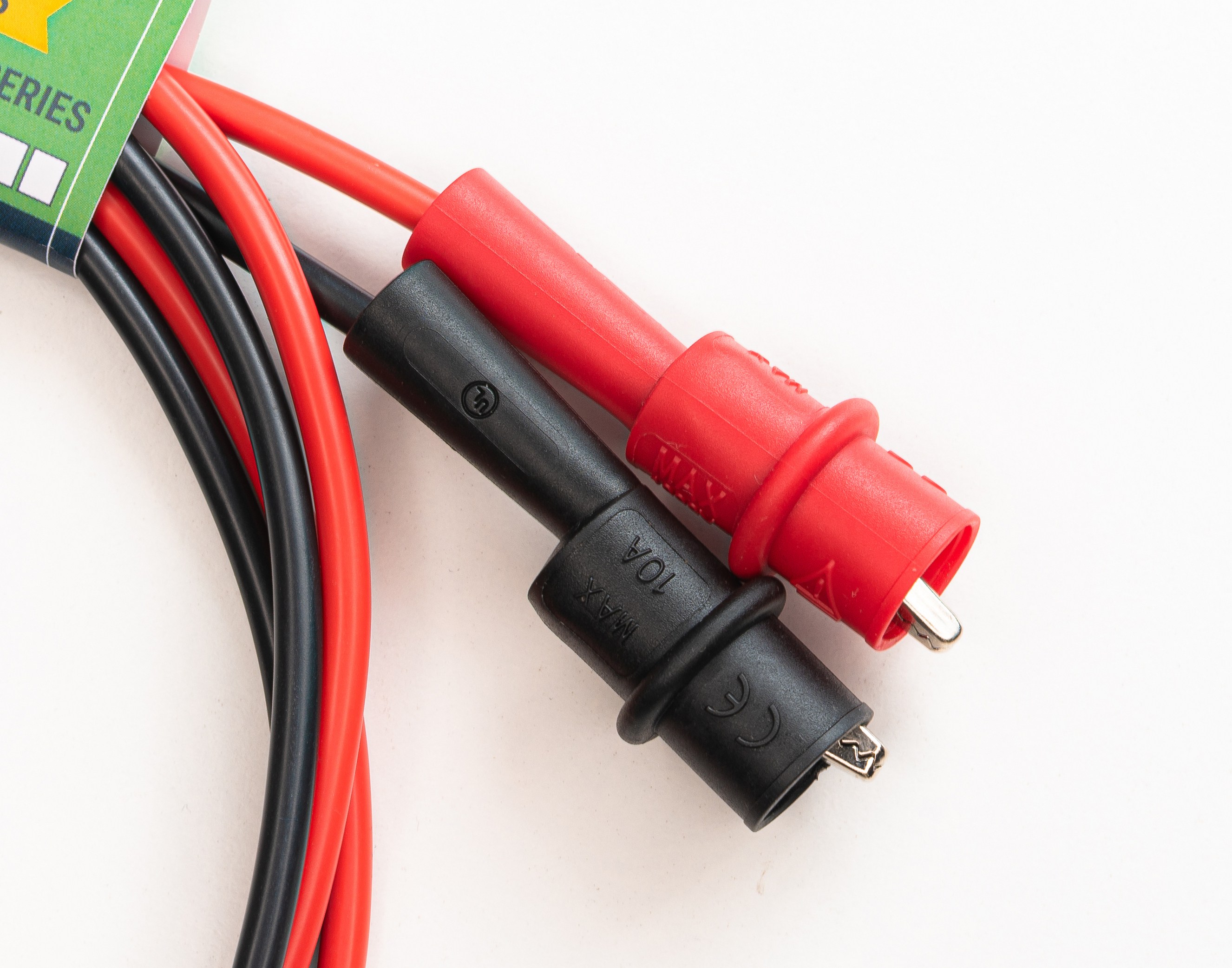

| On the other end of Cable is Crocodile (Alligator) Clip with opening: | 8.3 mm |
| The length of Crocodiles: | 67 mm |
| Material of Conductor: | Copper |
| Resistance of Cable: | 0.01 Ohm |
| Insulation breakdown Voltage | 500 VDC |
Power Cords for 30 Amperes video review by GRA & AFCH
Power Cords references:
Power Cords Designators:
Power Cords Thermal images comparison (cheap chinese cords VS GRA & AFCH Cords):
Power Cords Resistance comparison (cheap chinese cords VS GRA & AFCH Cords):
Power Cords for 30 Amperes High Current Series by GRA & AFCH:
