TAFM2833-AMP FM Transmitter with Amplifier

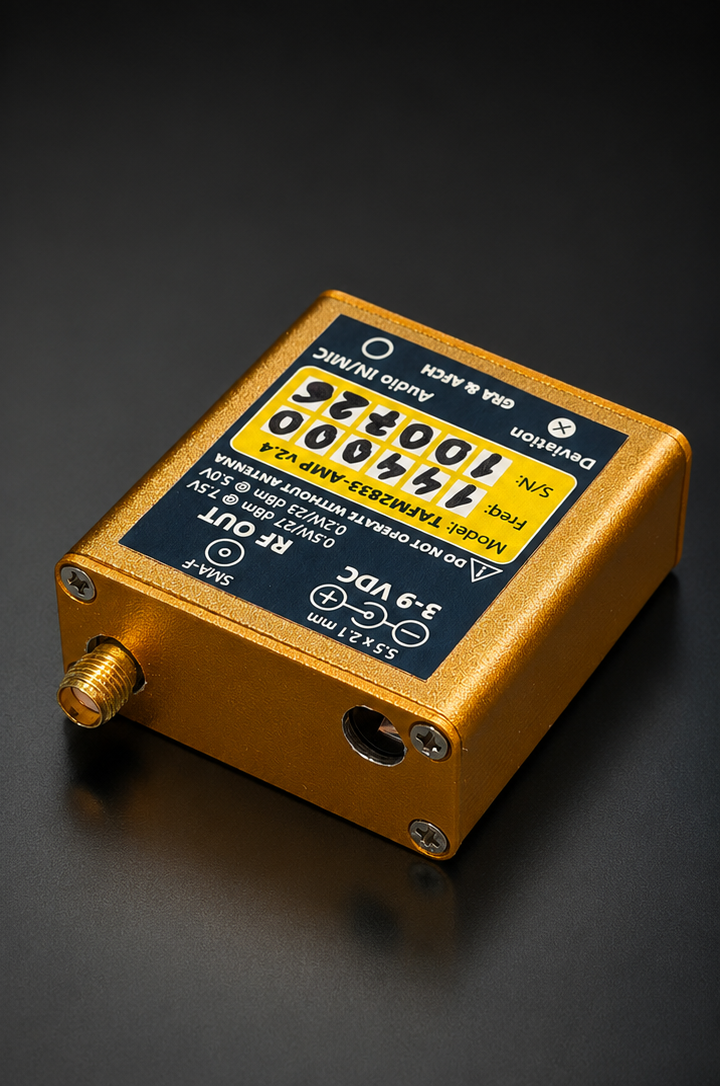

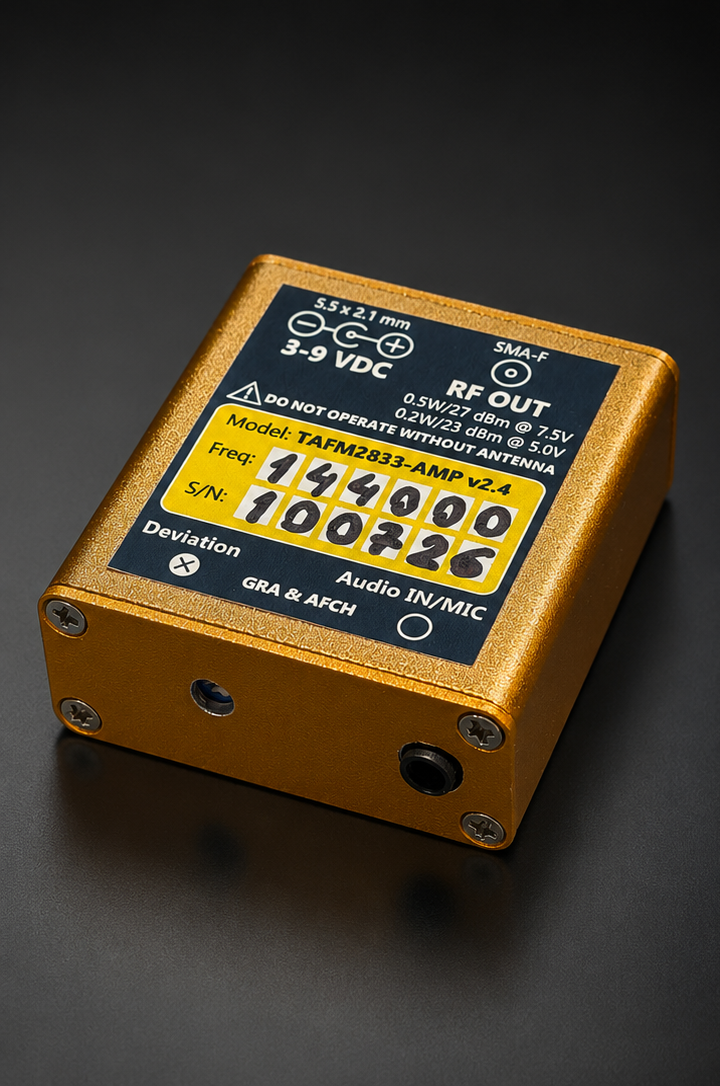

TAFM2833-AMP 144 MHz RF Transmitter in Compact Alluminum Case

Name: TAFM2833-AMP 144 MHz RF Transmitter in Compact Alluminum Case
SKU: gra_28816-1
Availability: InStock

Units Sold: 10

TAFM2833-AMP 144/145.5 MHz Compact RF Transmitter
Transmitting Analog Frequency Modulation Device with Antenna
Compact RF Analog and Digital Transmitter in Aluminum Case
Transmitter is built on Motorola IC MC2833 with Amplifier and LPF
Device can be used to Transmit Analog and Digital SFK Signals
The Carrier Frequency is 144 MHz with Modulation in Range 20-8000 Hz
PCB, Design, Schematics, Case and Software made by GRA & AFCH

$68.95 – $109.95

SKU: gra_28816-1 Category: RF UNITS Tags: Alluminum Case, Antenna, RF, TAFM2833, Transmitter

TAFM2833 144 MHz FM Transmitter with Amplifier 144 MHz/145.5 MHz TAFM2833-AMP 0.5W/27dBm

Overview:

This is the updated and improved version of our TAFM2833
Transmitting Analog Frequency Modulation Device
Compact RF Analog and Digital Transmitter in Alluminum Case
Transmitter is built on Motorola IC MC2833 with Amplifier + LPF
Device can be used to Transmit Analog and Digital SFK Signals
The Carrier Frequency can be 144 / 145.5 MHz (choose in selector)
The Signal can be Modulated in Range of 20-8000 Hz

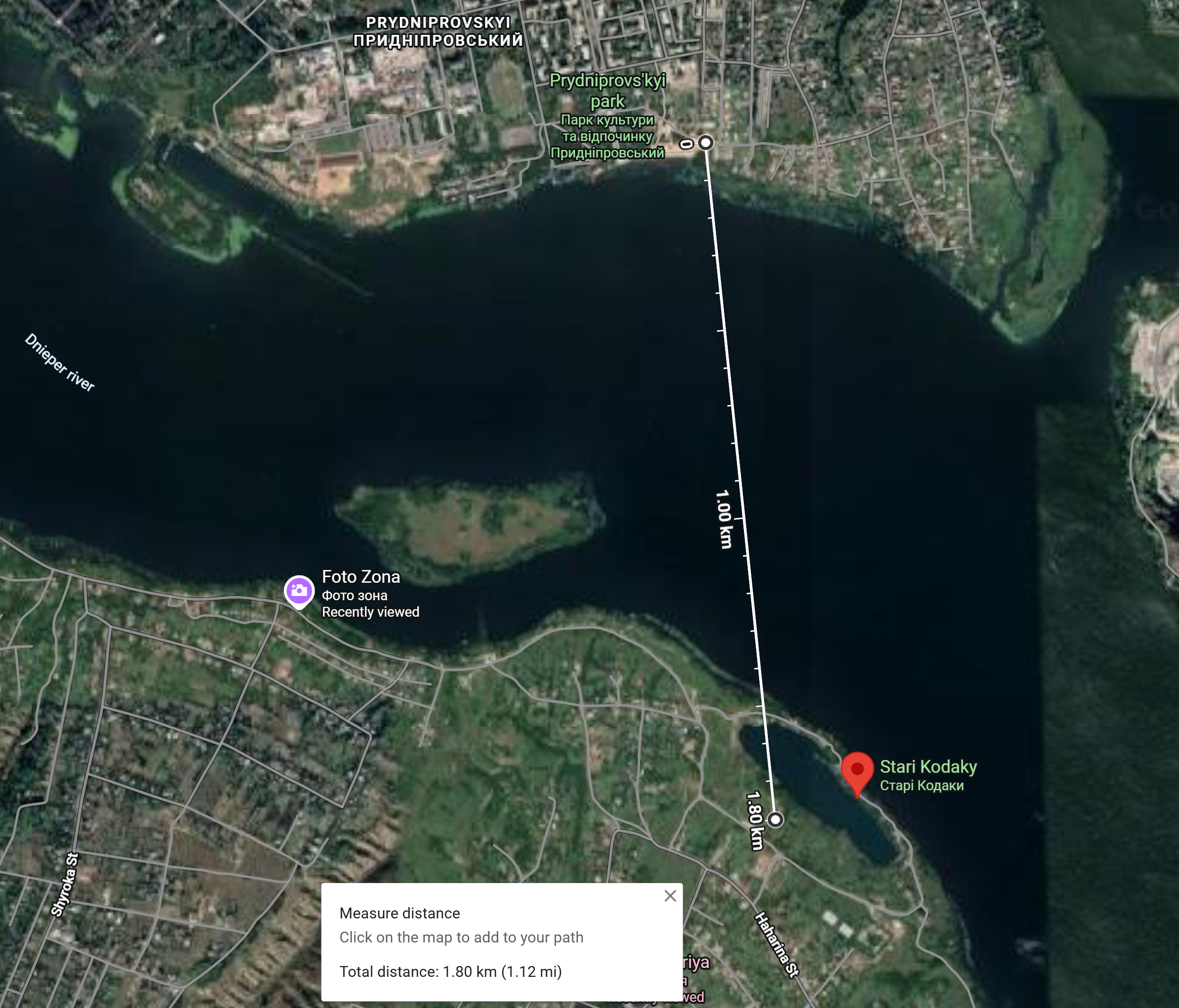

It provides a communication range of over 1.8 km (1.1 miles). See the map image for details.

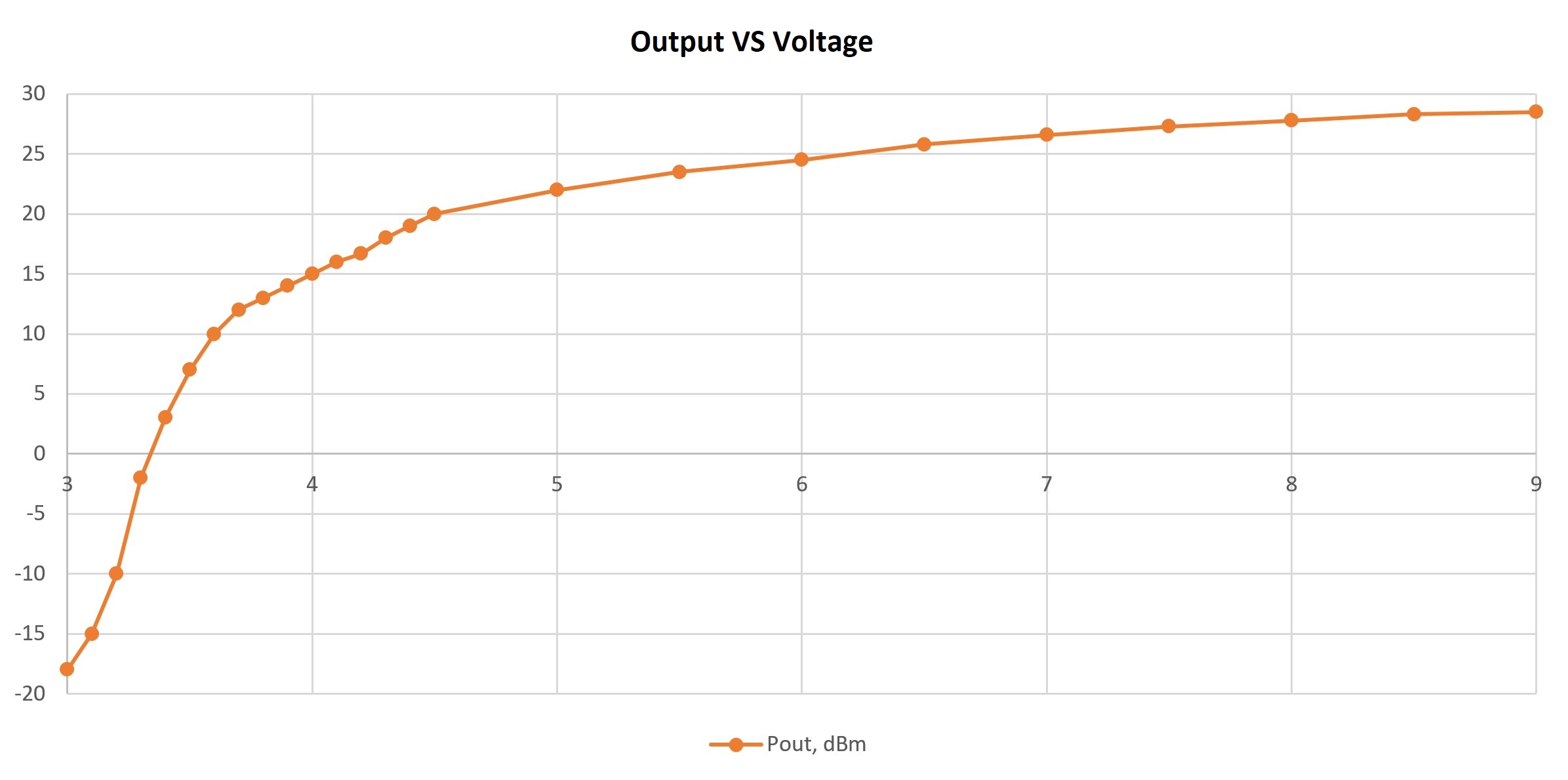

The transmitter power supply has been optimized to operate over a wide voltage range from 3 to 9 volts. This allows the transmitter to be powered either from a single lithium cell (3.7V) or from two cells connected in series (7.4V).

For example, it can also be powered from a 9 V/6F22 battery, which is available with different chemistries, including nickel-metal hydride, lithium, or cadmium-based versions or even be powered by batteries containing two built-in lithium cells.

Listing includes:

FM Transmitter TAFM2833-AMP [144MHz] in Aluminum Case – 1 pc
Power Supply [DC 7.5V/2A] [US, EU, UK] [AC plug] (optional, choose in selector)

We offer related products to this RF Unit:

DDS AD9910 Arduino Shield RF Signal Generator (600 MHz Low Spurs Low Harmonic)

TAFM2833 144 MHz RF Transmitter

Dear customers!
If you have ANY questions, PLEASE ASK us.

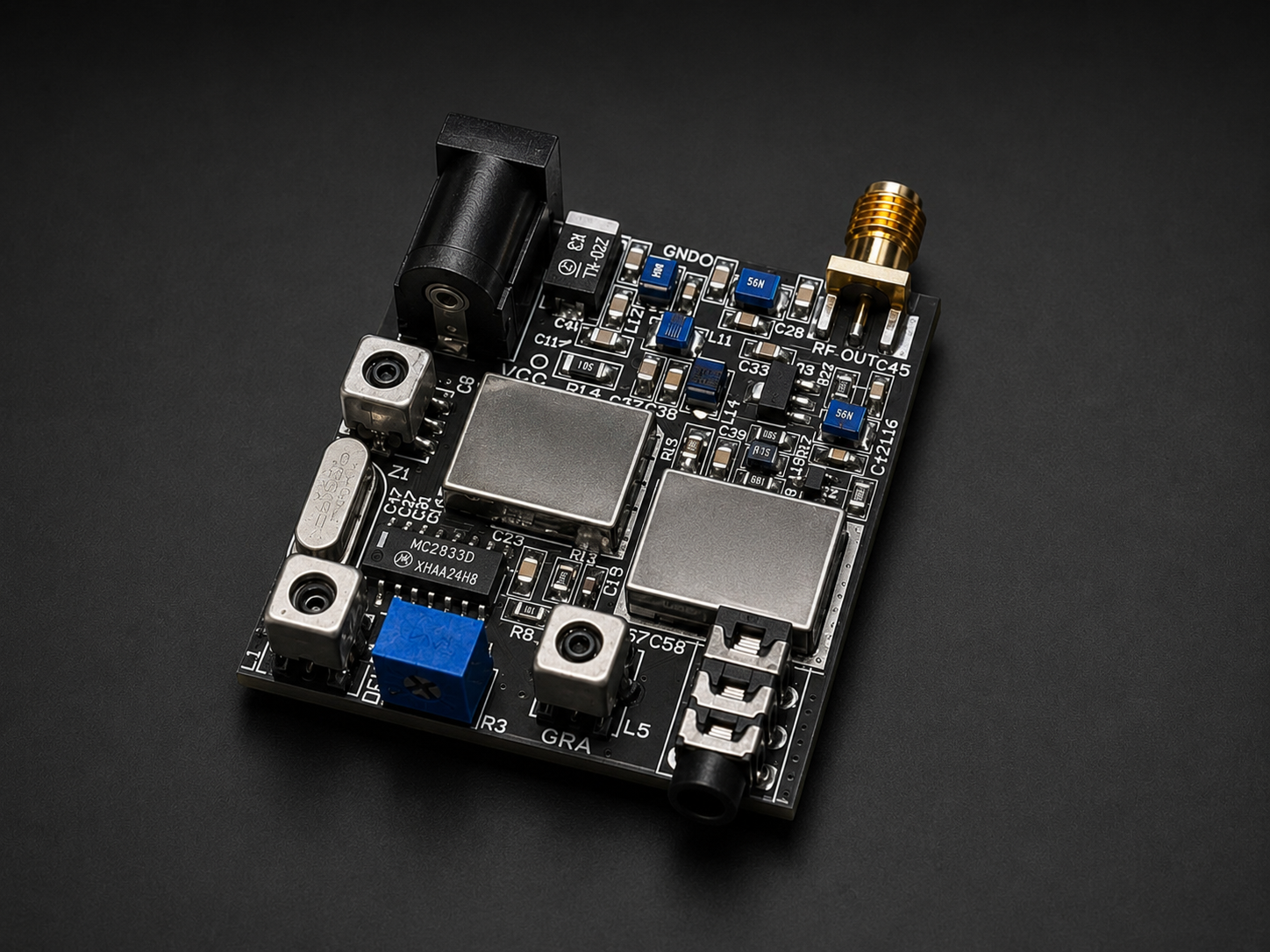

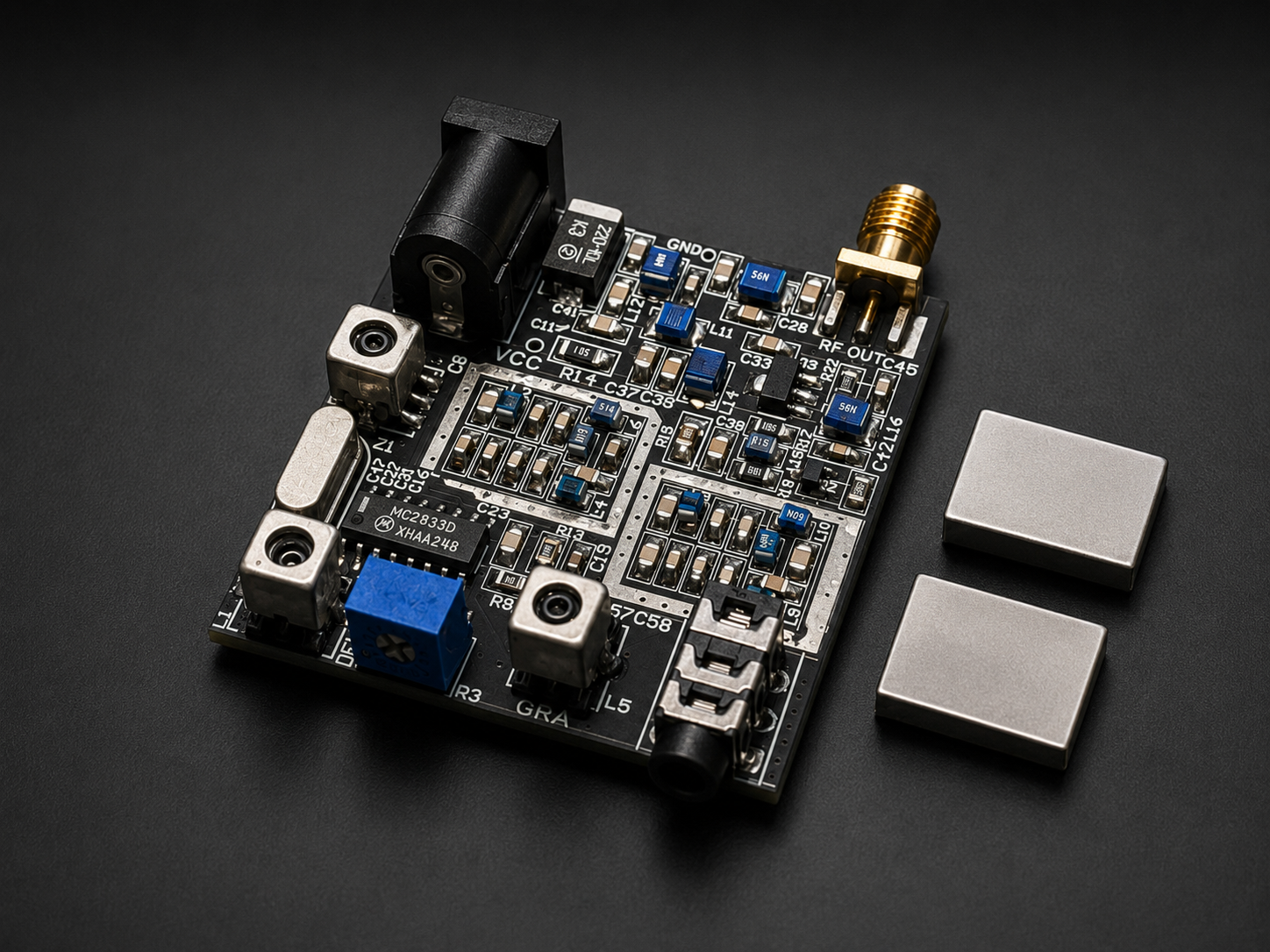

Description:

Fixed 144/145.5 MHz frequency Transmitter with FM Modulation
Device is Built on Motorola IC MC2833 and packed in Alluminum Case
For frequency stability a high quality Quartz Resonator is used
To increase the frequency of deviations to +/- 8 kHz a frequency multiplication is used
The 7th order Bandpass filter is used to suppress Spurs and Harmonics
High quality components are also used to ensure a clean Spectrum up to -60dBc
Device is suitable for Ttransmitting Analog Signals as well as Digital FSK
Transmitter MUST be used in conjunction with external Antenna!

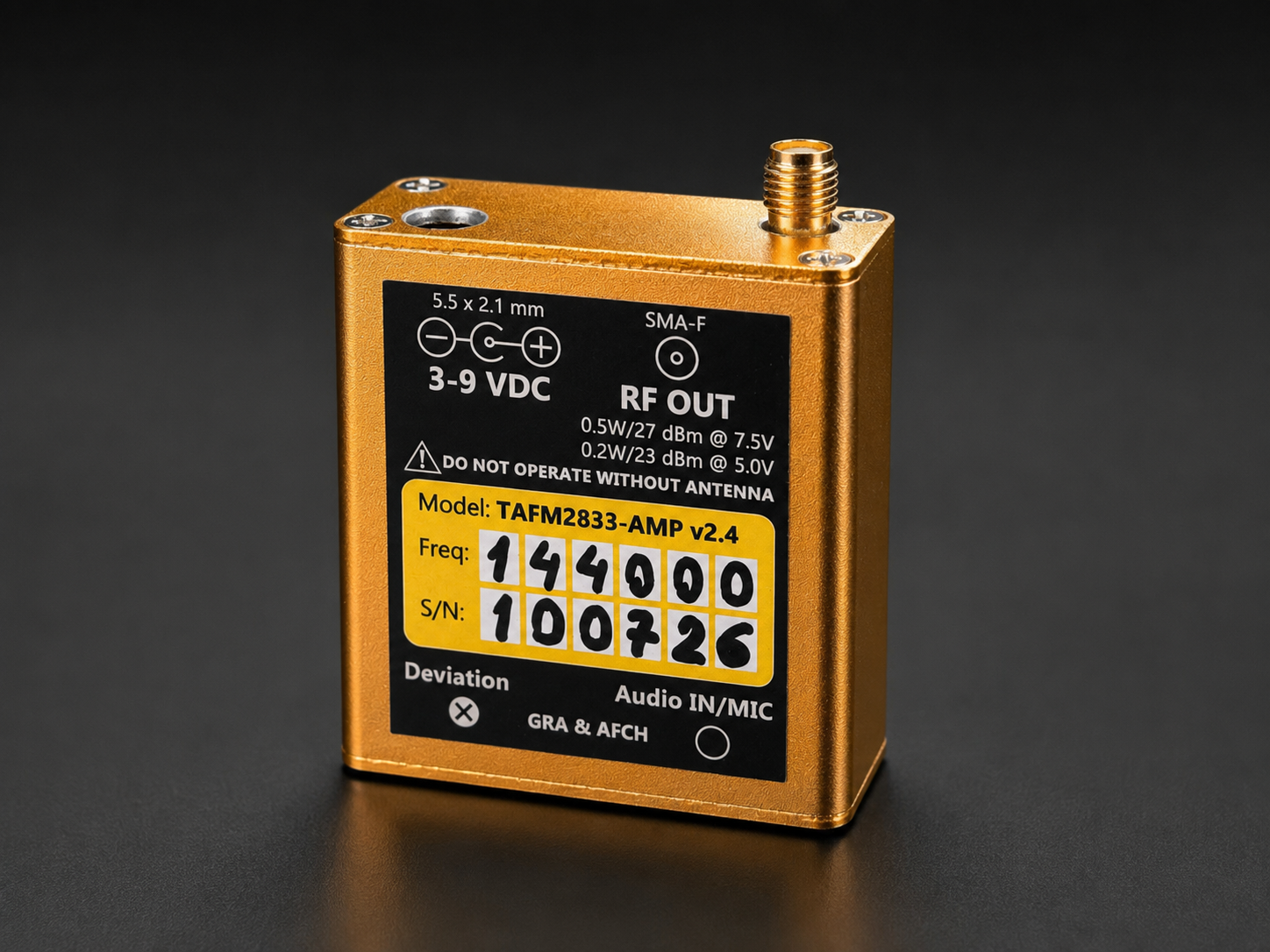

Main Features:

Carrier Frequency – 144/145.5 MHz (optional)
Input Modulation Signal level (maximum) – 10 mVrms
Deviation Frequency – +/- 8 kHz
Frequency Range of the Modulation Signal – 20 – 8000 Hz
Power Supply Voltage – 3-9 V
Power Connector dimensions – 5.5×2.1 mm jack
Output Power (at 7 V) – +27 dBm (0.5W)
Transmitter dimensions – 50x50x15 mm
Case material – Alluminum
External Antenna – mountable (not included)

Frequency multiplication:

We produce our FM Transmitters using multiplication of the Frequency method. This allows to achive quiet wide deviation with Frequency.
For example for output Frequency of 144 MHz we multiply 24 MHz Crystal for 6.

TAFM2833 RF Transmitter Spectrograms:

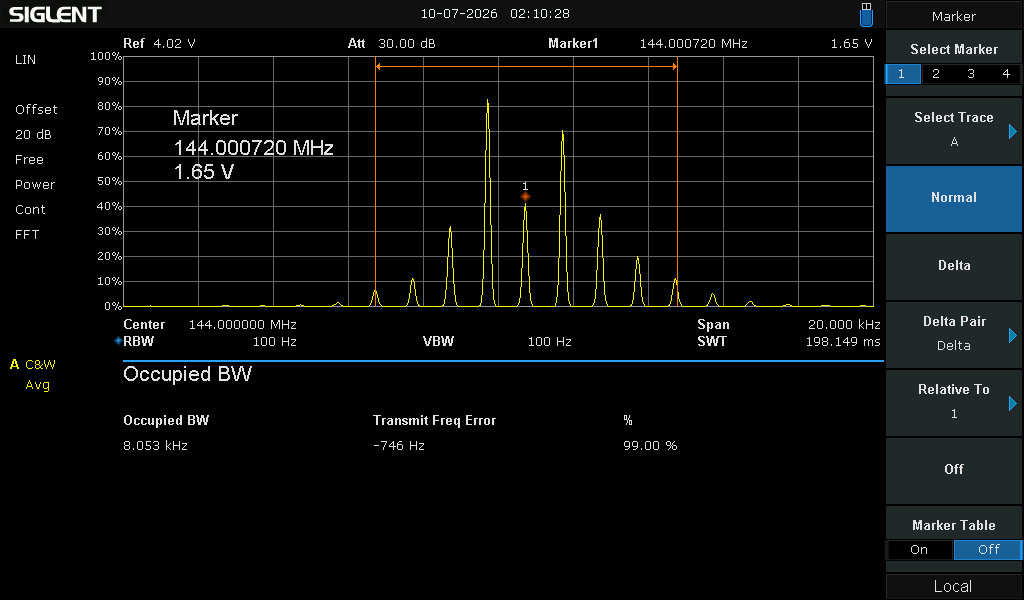

Transmitter FM Modulation Spectrum

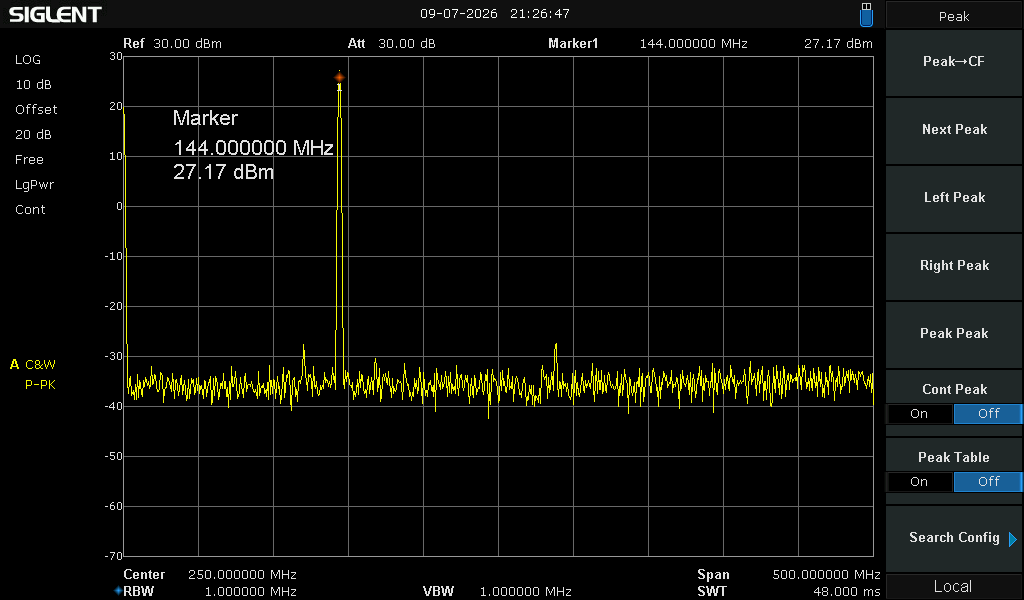

Transmitter Carrier Spectrum

TAFM2833-AMP RF Transmitter by GRA & AFCH:
