DIY KIT for IN-14 Shield Nixie Clock with Dots [SMF, RGB, USB, Tunes] (Tubes) (Sockets, Columns) (Arduino) (Temp. sensor, GPS Receiver, IR Remote) (Power Supply)

Units Sold: 284



Project “Divergence Meter mini”
DIY KIT for IN-14 Shield Nixie Tubes Clock
Arduino Shield Nixie Tubes Clock with Columns
Designed for 6 IN-14 xUSSR Nixie Tubes with Sockets
IN-14 Tubes are the most popular mass-produced Nixie Tubes
Nixie Clocks are one of the most beautiful and popular Vintage Clocks
Clock features Startup Tune, RGB backlight, USB port for updates
Shield options include Tubes, Columns, Sockets and Power Supply
Accessories include Temp. sensor, GPS Receiver, IR Remote
Shield Clock is designed for Arduino UNO and MEGA 2560 Boards
It allows you to write your own uniqe programs for the Arduino platform
All the latest Source codes are always available on our GitHub channel
PCB, Design, Schematics, Case and Software made by GRA & AFCH



$89.95$238.95

Clear

DIY KIT for IN-14 Shield Nixie Tubes Clock with Dots



Project “Divergence Meter mini”
DIY KIT for IN-14 Shield Nixie Tubes Clock
Arduino Shield Nixie Tubes Clock with Columns
Designed for 6 IN-14 xUSSR Nixie Tubes with Sockets
IN-14 Tubes are the most popular mass-produced Nixie Tubes
Nixie Clocks are one of the most beautiful and popular Vintage Clocks
Clock features Startup Tune, RGB backlight, USB port for updates
Shield options include Tubes, Columns, Sockets and Power Supply
Accessories include Temp. sensor, GPS Receiver, IR Remote
Shield Clock is designed for Arduino UNO and MEGA 2560 Boards
It allows you to write your own unique programs for the Arduino platform
All the latest Source codes are always available on our GitHub channel
PCB, Design, Schematics, Case and Software made by GRA & AFCH





Listing includes:



  • Shield Tubes Board NCS314 bare PCB
  • Set of electronic Parts and Components for Shield Tubes Board NCS314
  • Set of hex Spacers and Screws for Shield Tubes Board NCS314
    with Arduino Control Board [UNO or MEGA 2560]
  • NE-2H Neon Dots [2 pcs] (with one spare) (included with the KIT)

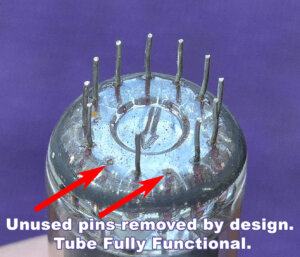

  • IN-14 Nixie Tubes [6 Tubes Set] (optional, choose in selector)
  • Sockets for Tubes [for 6 Tubes] [thin pins] (optional, choose in selector)
  • NE-2H Neon Dots [2 pcs] (additional) (included with Columns)
  • Columns for Dots [2 pcs] [50mm] (optional, choose in selector)
  • Arduino Control Board [UNO or MEGA 2560] (optional, choose in selector)
  • Temperature sensor [DS18B20] [3.5mm jack] (optional, choose in selector)
  • GPS Receiver [GA-6] [3.5mm jack] (requires Arduino MEGA 2560) (optional, choose in selector)
  • IR Remote [RMX153R] [IR] (requires Arduino MEGA 2560) (optional, choose in selector)
  • Power Supply [12V/1A] [US, EU, UK, AU] [AC plug] (optional, choose in selector)
  • Principal electrical Scheme for Shield Tubes Board NCS314
  • BOM (Bill of Materials) List for Shield Tubes Board NCS314
  • Operating Instruction on vintage-style paper





Shield Board features Socket pins for Nixie Tubes

Columns with separating Dots are optional for the KIT

Arduino Control Board is optional for the KIT

Power Supply is optional for the KIT



Nixie Clock support usage of basic Accessory – Temperature sensor
Arduino Shield Clock support usage of advanced Accessories: GPS Receiver and IR Remote (with Arduino MEGA)





We offer optional Accessories for Arduino Shield Clocks:



Dear customers!
If you have ANY questions, PLEASE ASK us.





Our Benefits:



  • All our Nixie Tubes Clocks are using HV513WG chips,
    it provides higher brightness in multiplexing mode in comparison with HV5812 chip and greater reliability compared to legacy K155ID1
  • We offer flexible Tubes Boards platform, that support many Nixie Tubes
    (out Tubes Boards designed for IN-4, IN-8, IN-8-2, IN-12, IN-14, IN-16, IN-17, IN-18 and Z573, Z5660M, ZM1042, Z568M Nixie Tubes)
  • It is easy to build a beautiful Nixie Tubes Clock with our Boards, we also offer Acrylic, Wooden and Stone Cases for our Clocks
  • Fast uploading pf the Firmware via USB to the Control Board
  • All the latest version of the Firmwares to all our Nixie Clocks are always available on our GitHub channel
  • No need for additional drivers, we are using only genuine USB-to-serial converters (FTDI),
    drivers for them are pre-installed in all popular OSes: Windows, MacOS, Linux
  • It is easy to modify the Nixie Clock’s Firmware functions for your tasks due to the open Arduino platform
  • We use High Quality PCBs and Components, also we use Japanese aluminum capacitors only for our Boards (Nichicon, Panasonic)
  • Tubes Board is easy to modify by cutting if you want to build 4 Tubes Clock [HH:MM] from 6 Tubes Clock
  • Our Nixie Boards use Power On Self-Test (POST): LED backlight flashing,Tubes flashing and Start up Tune. Our Boards use,
    Firmware version can be seen at the end of the POST test
  • Our Tubes Boards use Unique detailed Tube test – our soft test checks each Tubes segment on every Tube so it distinguishable to see segments failures
  • We provide competent technical support for all our products





Software Features:



  • Shield supports IN-14 Nixie tubes – 6 pcs.
  • Date format: [DD:MM:YY]; 12/24 hour format: [HH:MM:SS].
  • Full static display mode.
  • Slot Machine (Anti poisoning – tubes saving function. Increases the service life).
  • Temperature measurement [Celsius or Fahrenheit]. Digital temperature sensor (DS18B20, optional  not included).
  • GPS time synchronization (requires a standard GPS receiver, NMEA protocol, 5 V power supply, optional, choose in selector).
  • Operation via IR remote control (Remote control Sony RM-X151, optional not included).
  • Automatic information refreshing on the tubes.
  • The maximum possible brightness of the tubes.
  • Unique RGB LED backlight with 16,7 million colors. Your can choose any constant color off backlight LED and memorize it. Or you have option for a cyclic full spectrum color change!
  • Switching on/off LED backlight in the matter of seconds.
  • As alarm sound clock uses standard RTTTL (Nokia format) melodies, so You can easy change it. (included songs: Mission Impossible, We Wish You…).
  • Easy updating firmware via USB using Arduino IDE.
  • Power On Self-Test (POST): LED backlight, tubes and sound. You can check firmware version at the end. Unique detailed tube test – our soft check each segment on every lamp. Distinguishable to see segment failure.





Hardware Features:



  • Highly Accurate RTC (Real Time Clock) DS3231SN with backup battery.
  • Integrated high voltage power supply: 150 – 220V.
  • High voltage adjusting potentiometer.
  • 3 control buttons on board.
  • 8 pcs RGB SMD LEDs.
  • 3 PWM channels for RGB LEDs 8 bit per channel = 24bit = 16,7 million colors. It can be disabled in the menu (see manual).
  • Internal buzzer.
  • Test points for testing, adjusting and controlling low and high voltage circuits.
  • Plug for optional external GPS receiver  (only with Arduino Mega).
  • IR receiver TSOP4836 for optional IR remote controllers (In case of using Arduino UNO, they may conflict with “Tone” library). If you plan to use remote control, we strongly recommend the using of Arduino MEGA – works fluently.
  • 3 pin connector for optional Temperature sensor (DS18B20; 1-Wire protocol).
  • SPI up to 4MHz.
  • Places for 2 column with 2 neon dots (digits separator).
  • Independent controls for upper and lower dots.
  • Power consumption: 12V, 760mA. Recommended: 12 VDC, not less than 1A. Power supply connector dimensions: 5.5 x 2.1mm (center pin positive “+”).
  • Reverse polarity protection.
  • Nixie Tubes Shield NCS314 PCB size: 200mm x 53.34mm. (7.87 x 1.2 in)





Shields comparison table:







IN-14 Arduino Shield Nixie Tubes Clock by GRA & AFCH:















DIY KIT for NCS314 v2.2 Shield:





IN-14 NCS314-4 Arduino Shield References:



NCS314 v2.2 Shield Board Top Bare PCB:



NCS314 v2.2 Shield Board Bottom Bare PCB:



NCS314 v2.2 Shield Board Top Populated PCB:



NCS314 v2.2 Shield Board Bottom Populated PCB:





IN-14 Shield NCS314 v2.2 Electrical Scheme:







Boards Dimensions in 2D and 3D:





IN-14 Arduino Shield Nixie Tubes Clock by GRA & AFCH:

An example of assembled board NCS314 – complete Set

The base listing contains only BARE PCB and full set of electronics parts (Arduino, Columns and Power Supply are EXCLUDED from set)









Operating Instruction





Dear customers!
If you have ANY questions, PLEASE ASK us.



Shipping and Return information



All Items are shipped from Ukraine
Via International registered Airmail
Shipments are made within 1 business day
After the payments are received and verified
It takes about 4-7 days via UPS Express delivery
It takes about 10-18 days via Standard shipping
It takes about 35-45 days via Economy shipping
We combine multiple Items to save on shipping







UPS Express Shipping time (recommended):

Europe: 3-5 days
Germany: 3-5 days
USA, Canada: 4-7 days
Asia, South America: 5-7 days
Australia, New Zealand: 5-7 days
Africa, Central America: 5-7 days





Standard Shipping time:

Europe: 10-12 days
Germany: 10-12 days
USA, Canada: 10-15 days
Asia, South America: 10-18 days
Australia, New Zealand: 12-18 days
Africa, Central America: 12-18 days





Economy Shipping time:

Europe: 25-30 days
Germany: 25-30 days
USA, Canada: 30-35 days
Asia, South America: 35-45 days
Australia, New Zealand: 45-55 days
Africa, Central America: 45-55 days





Return Policy

All Returns are accepted

  • For Return you should contact Us within 14 Days after receiving the Item
  • Refunds are made as Money back or Replacements (buyer’s choice)
  • Return Shipments are paid by the buyer
  • No restocking fees are charged





Customs Policy

We as a seller do not receive from the buyer any charges any sales taxes and handling fees.
In any case we are not responsible for Tax(VAT) or any other Import duties or any other equivalent fees that arises upon delivery.
Please consult with your local Customs legislation and visit your local Customs department or website before making any purchases.
