Band-Pass Filter BPF 7th Order 80…1000Mhz 144MHz 433MHz 868MHz 915MHz 1GHz for RF Receiver Transmitter Amplifier Mixer Transceiver Antenna (Custom Frequency on Request)
Units Sold: 16
A Band-Pass Filter or BandPass Filter (BPF)
It is a device that passes frequencies within a certain range
And it rejects (attenuates) frequencies outside that range
$34.95 – $69.95
Band-Pass Filter BPF 7th Order 1-1000Mhz 433MHz 868MHz 915MHz 1GHz for RF Receiver Transmitter Amplifier Mixer Transceiver Antenna
A Band-Pass Filter or Band-Pass Filter (BPF)
It is a device that passes frequencies within a certain range
And it rejects (attenuates) frequencies outside that range
Band-Pass Filter BPF 7th Order
Listing includes:
- Band Pass Filter RF Unit [BPF 1-1000MHz] (optional frequency, choose in selector)
BPF can be preset to specific Custom frequency and Bandwidth
Specific BPF frequency can be selected from the list in options:
- BPF 315Mhz
- BPF 433Mhz
- BPF 868Mhz
- BPF 915Mhz
- BPF 1Ghz
- BPF Custom frequency range: 1-1000Mhz*
*when you select Custom Frequency in options you can order a Filter with a center frequency from 300 to 1000 MHz.
Pass-band in this case will be 4%-10% and losses within the pass-band will be 3-4 dB.
Example 1:
if you want a Filter with a center frequency of 900 MHz,
then the pass-band can be selected from 36 MHz (this corresponds to 4%) to 90 MHz (this corresponds to 10%)
Example 2:
if you want a Filter with a center frequency of 350 MHz,
then the passband can be selected from 14 MHz (this corresponds to 4%) to 35 MHz (this corresponds to 10%)
Our Band Pass Filter based on Lumped LC circuits
If you are ordering Custom Filter add Note to specify center Frequency in [MHz] at -3dB level and bandwidth
If you have ANY questions, PLEASE ASK us.
Overview:
A Band-Pass Filter (BPF) is a device that passes frequencies within certain range and rejects (attenuates) frequencies outside that range.
They are also known as BandPass Filters and they play a crucial role in usage of wireless radio frequency Receivers and Transmitters in radio electronics.
When used in a Transmitter, their primary function is to restrict the Bandwidth of the output signal to the allocated transmission Band.
This ensures that the Transmitter does not interfere with other stations operating in different frequency Bands.
Conversely in a Receiver a BandPass Filter permits signals falling within a particular frequency range.
They are then received and decoded, while blocking out unwanted signals at other frequencies.
Hardware Features:
- Сutoff frequency: choose in the selector 1 – 1000MHz;
- Low Insertion Loss S21: 2 – 4 dB;
- Standing wave ratio VSWR (S11, S22): 1.1 – 1.4;
- Maximum input power: 1-2W;
- PCB dimensions (without SMA connectors): 40 mm x 18 mm x 9 mm
Band Pass Filter BPF 7th Order Spectrograms and VSWR:

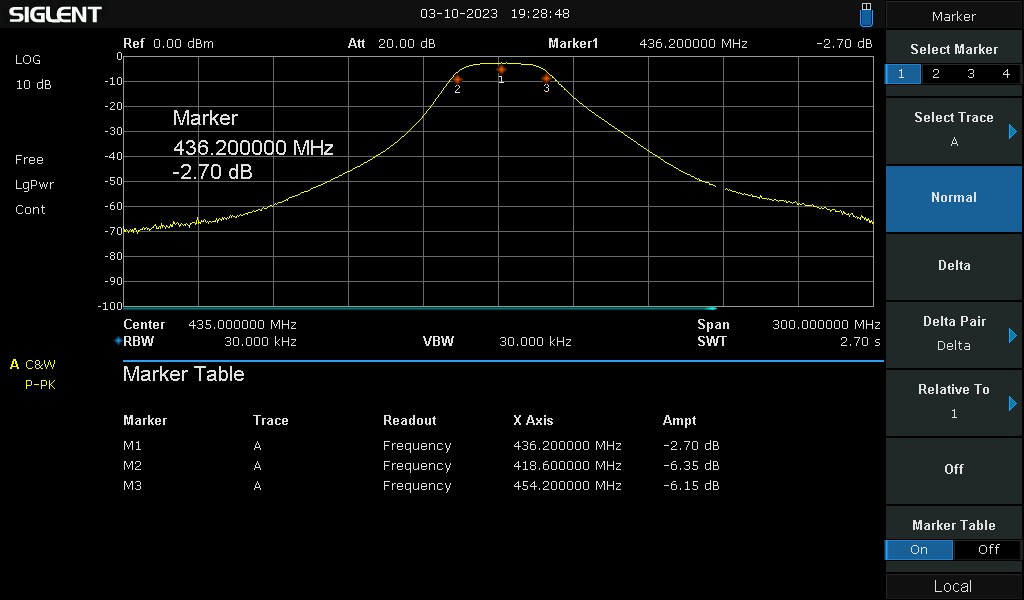

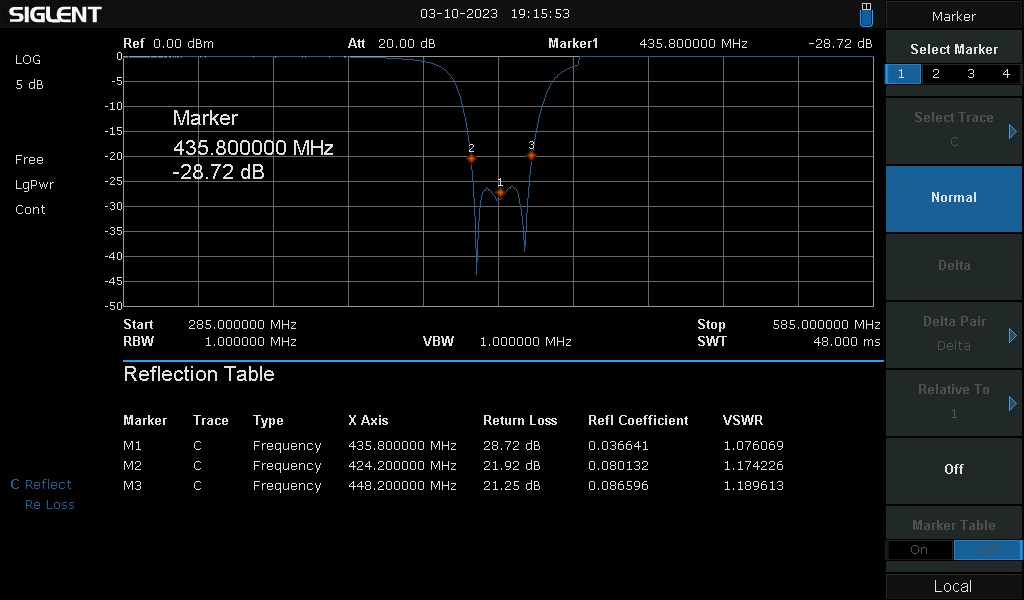

Band Pass BPF 7th-order Filter at 433MHz
Band Pass BPF 7th-order Filter at 915MHz

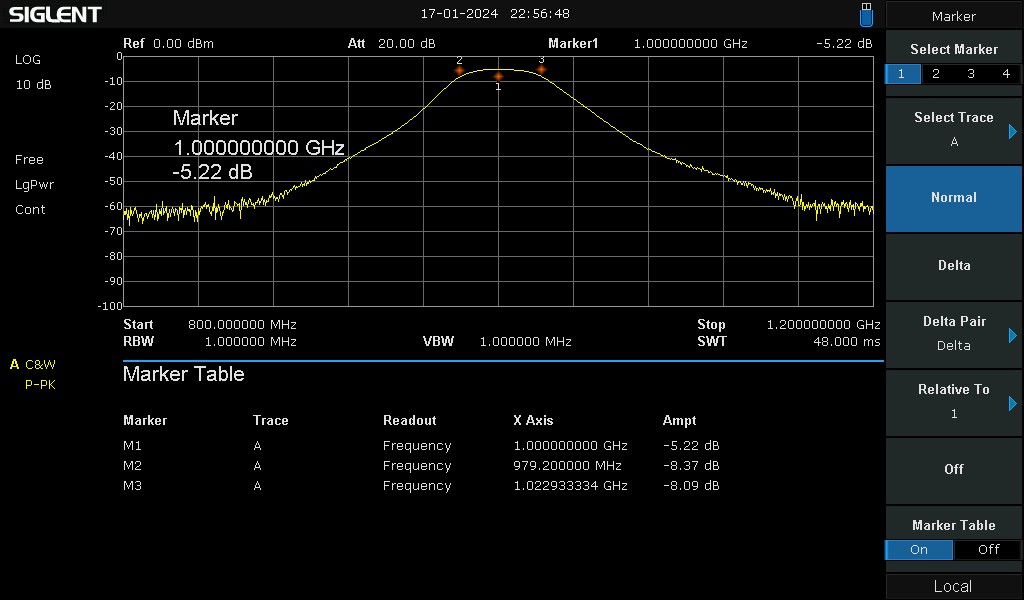

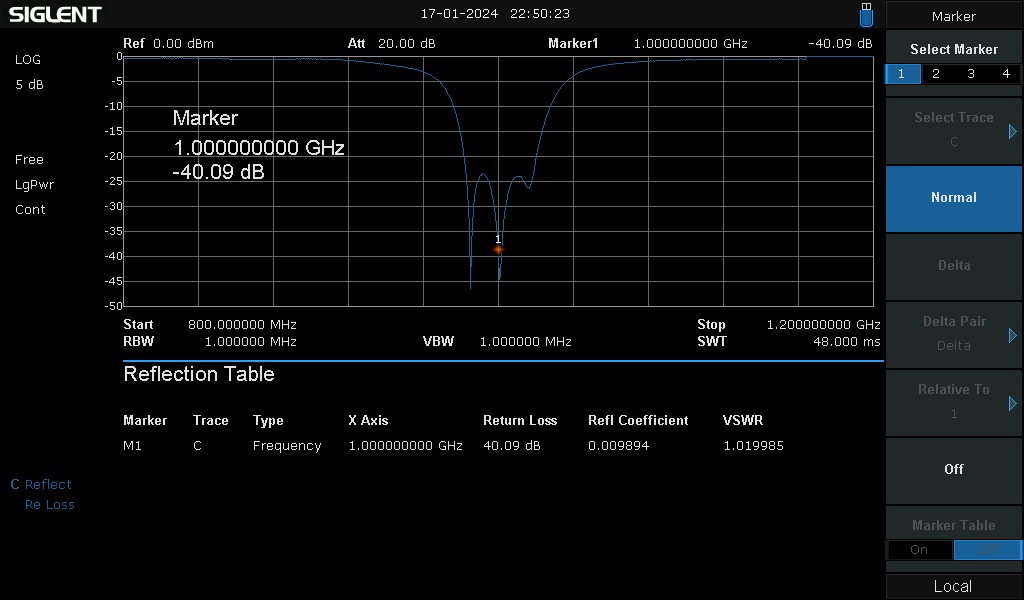

Band Pass BPF 7th-order Filter at 1000MHz
Band-Pass Filter BPF 7th Order by GRA & AFCH:
If you have ANY questions, PLEASE ASK us.
