Band-Pass Filter BPF 7th Order 144-148MHz for RF Receiver Transmitter Amplifier Mixer Transceiver Antenna
Units Sold: 10
A Band-Pass Filter or BandPass Filter (BPF)
It is a device that passes frequencies within a certain range
And it rejects (attenuates) frequencies outside that range
$34.95
Band-Pass Filter BPF 7th Order 144-148Mhz for RF Receiver Transmitter Amplifier Mixer Transceiver Antenna
A Band-Pass Filter or Band-Pass Filter (BPF)
It is a device that passes frequencies within a certain range
And it rejects (attenuates) frequencies outside that range
Band-Pass Filter BPF 7th Order
Listing includes:
- Band Pass Filter RF Unit (assembled, preset to 144MHz)
Custom design:
We are offering custom design development for this Unit for 1200$
This comes with condition that at least 10 pieces of them will be ordered then
Dear customers!
If you have ANY questions, PLEASE ASK us.
If you have ANY questions, PLEASE ASK us.
Overview:
A Band-Pass Filter (BPF) is a device that passes frequencies within certain range and rejects (attenuates) frequencies outside that range.
They are also known as BandPass Filters and they play a crucial role in usage of wireless radio frequency Receivers and Transmitters in radio electronics.
When used in a Transmitter, their primary function is to restrict the Bandwidth of the output signal to the allocated transmission Band.
This ensures that the Transmitter does not interfere with other stations operating in different frequency Bands.
Conversely in a Receiver a BandPass Filter permits signals falling within a particular frequency range.
They are then received and decoded, while blocking out unwanted signals at other frequencies.
Hardware Features:
- Сutoff frequency 144MHz;
- Low Insertion Loss S21: 2 – 4 dB;
- Standing wave ratio VSWR (S11, S22): 1.1 – 1.4;
- Maximum input power: 1-2W;
- PCB dimensions (without SMA connectors): 40mm x 18mm x 9mm

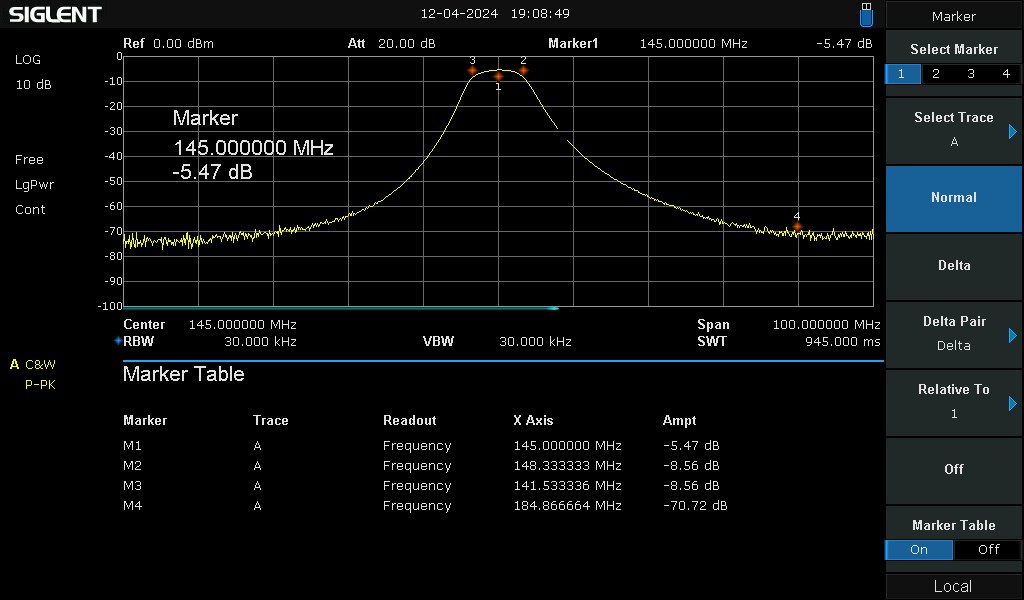

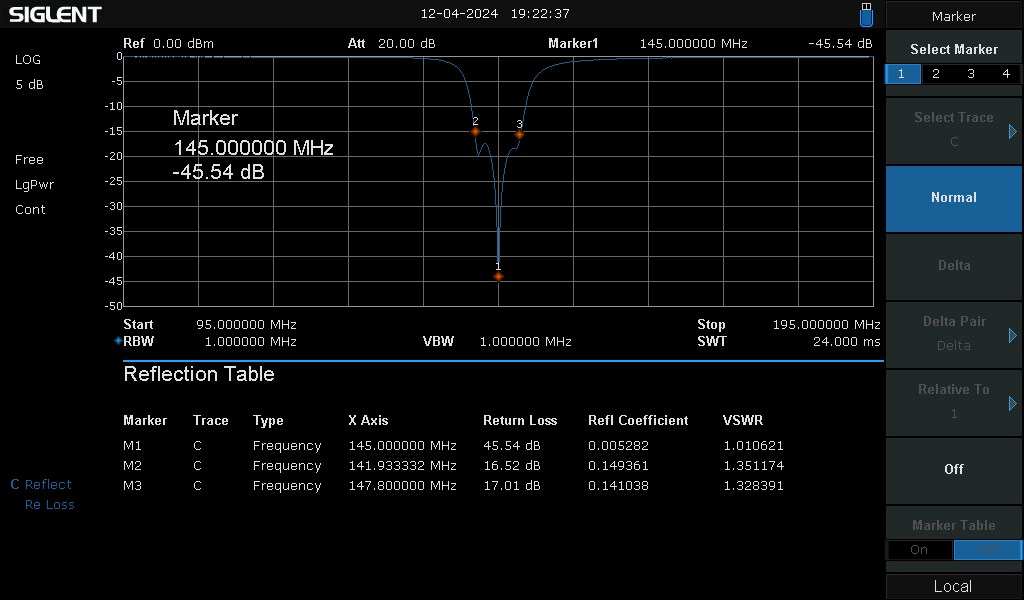

Band Pass Filter BPF 7th Order Spectrograms and VSWR:

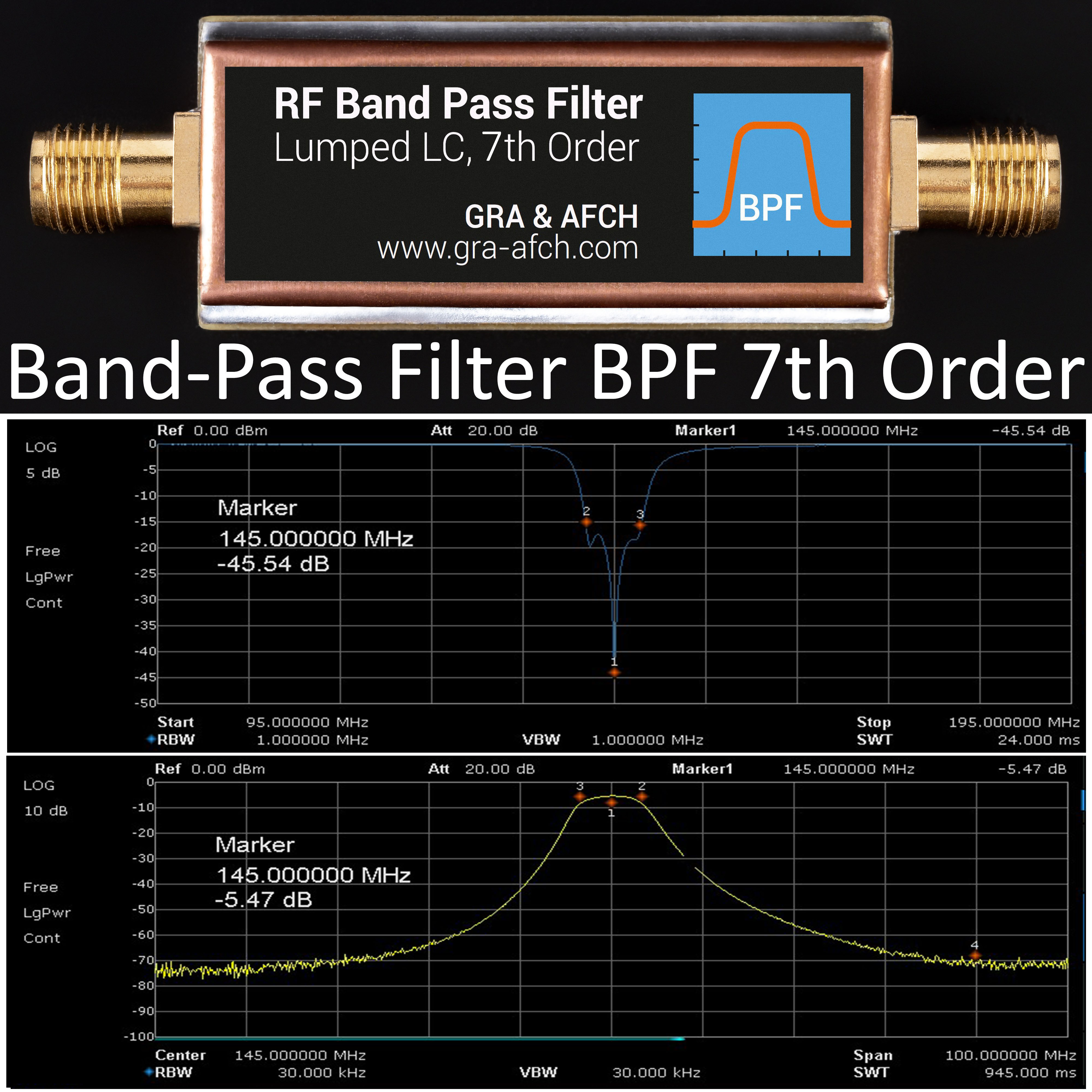

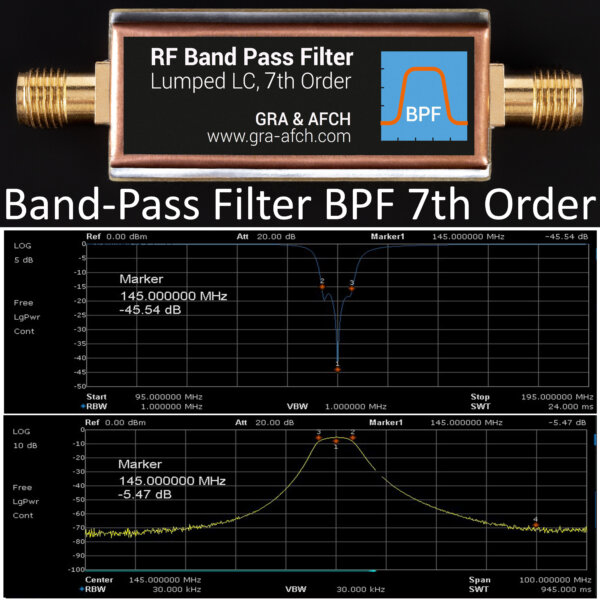

Band Pass BPF 7th-order Filter at 144MHz
Band-Pass Filter BPF 7th Order by GRA & AFCH:
Dear customers!
If you have ANY questions, PLEASE ASK us.
If you have ANY questions, PLEASE ASK us.
